Chinese brand 1+12+18+24 x 630 mm rigid stranding line

• Stranding machine 54 Bobbins 12+18+24 cages plus 7 nos stationary 630mm pay-off is available to complete the 61 wires configurations.
• Year of manufacturing 2007 and machine manufacturer is well Gain Cable System LTD. China.
• Machine Description: Bobbins OD 630mm shaftless pay-off 12+18+24 bobbins cages.
• Round compacted conductor CU/AL from 35mm² to 300mm². Overhead conductor AAC /ACSR. One separate pay-off is also available for steel core / center wire. Sector shaped conductor upto 95mm² CU/AL.
• Lins speed: 6.9 – 53 m/min.
• Electrical Machine Specs: 415V 3 phases, 50 HZ.
• Main motor 132 KW DC.
• Capstan OD 2500mm (dual driven). Max pulling force 12MT.
• Take-up reel size range 1600mm to 2500mm. Max load 10MT.
• Bobbins loading mechanism: Side loading batch type.

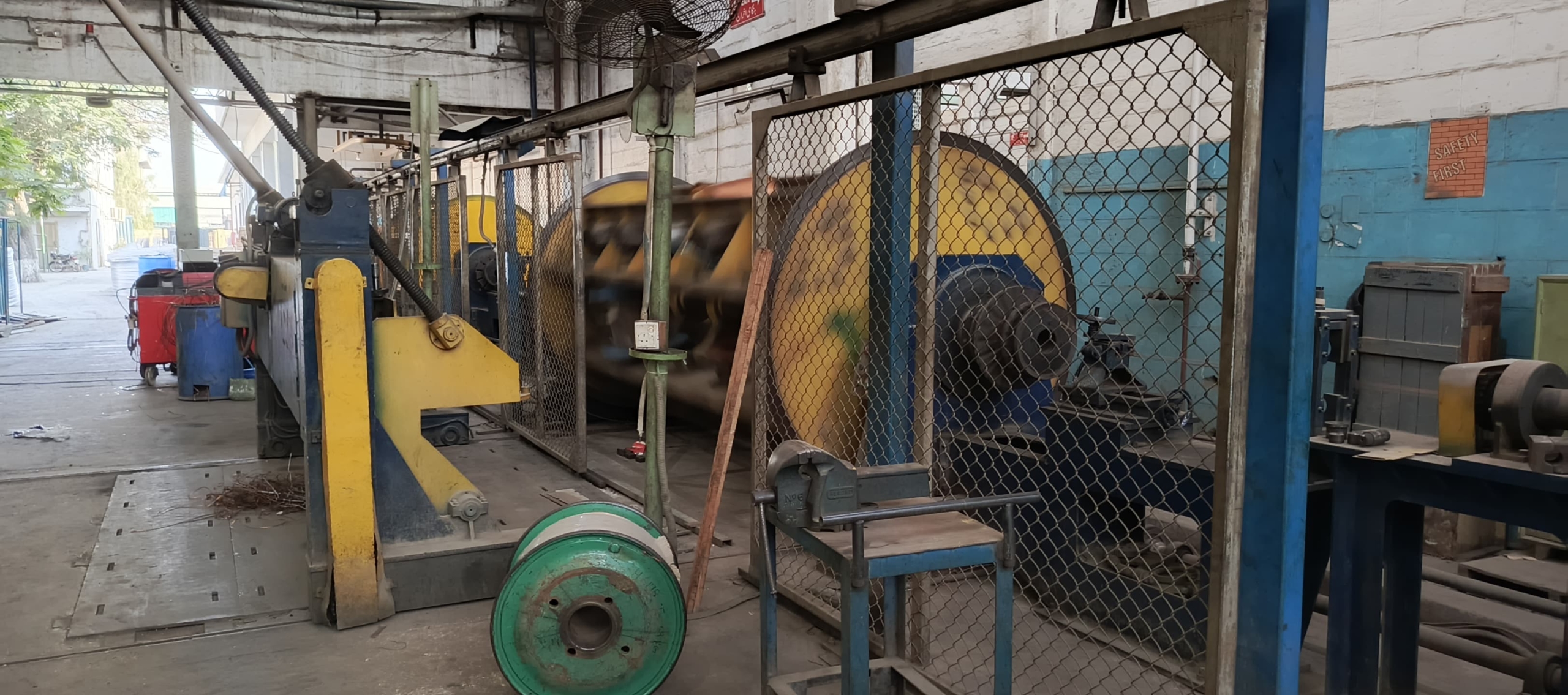

Machine is still installed and in good running conditions.
