Description
- Inlet high carbon steel rod dia.: 4 mm (C=0.80% max.)
- Outlet minimum high carbon steel wire dia.: 0.60 – 1.60 mm
- Number of dies: 11
- Final drawing speed: 22 m/s max.
- Working direction: from left to right
- Average reduction per die: 15% – 21%
Complete line composed of following items:
- Vertical coil type pay-off

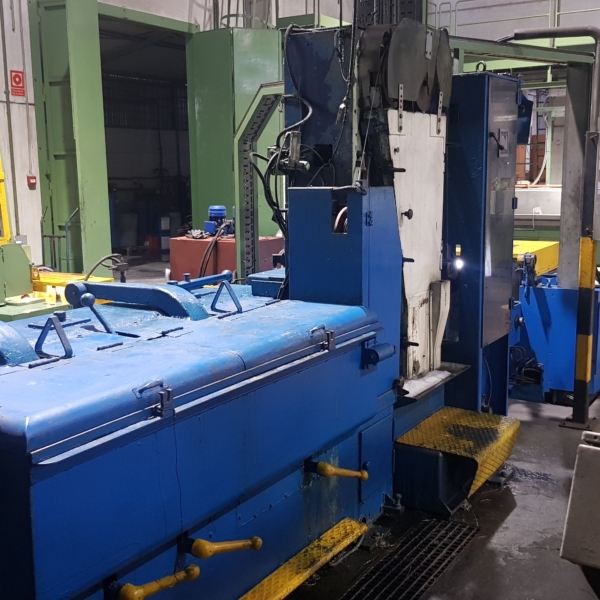

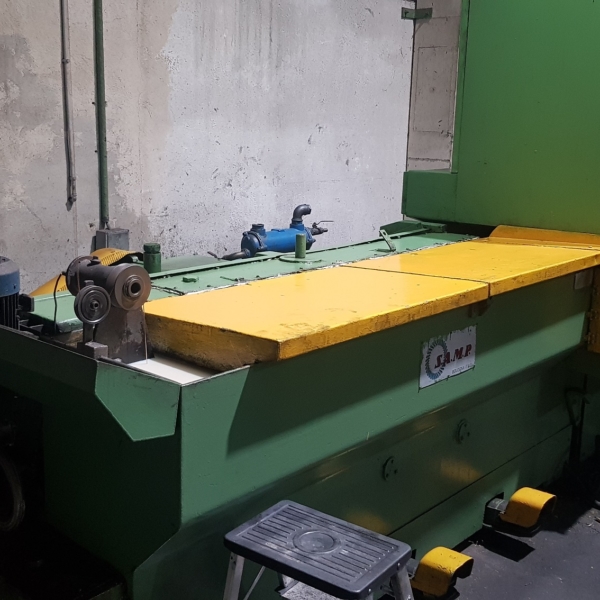

- Drawing body composed of 11 blocks dia. 400 mm
- Type: MTS400/11
- Rotating die for first block
- Three first blocks driven by 21.5 kW AC motor
- Eight last blocks driven by 19.5 kW AC motor
- With regulating dancer arm between the drawing blocks
- Last block stripped to adapt a spider for collecting the drawn wire
- Single spooler for bobbins dia. 630 mm max.
- Type: BOM 315/630 mm
- Driven by 27 kW AC motor
- Electrical cabinet
- With EEI drives
- HITACHI PLC
