Description
- Line particularly designed for XLPE insulation (sioplas technology)
- It could also be used with PVC
- Line also designed for sheathing purposes
- One extrusion screw for the each of the two extruders

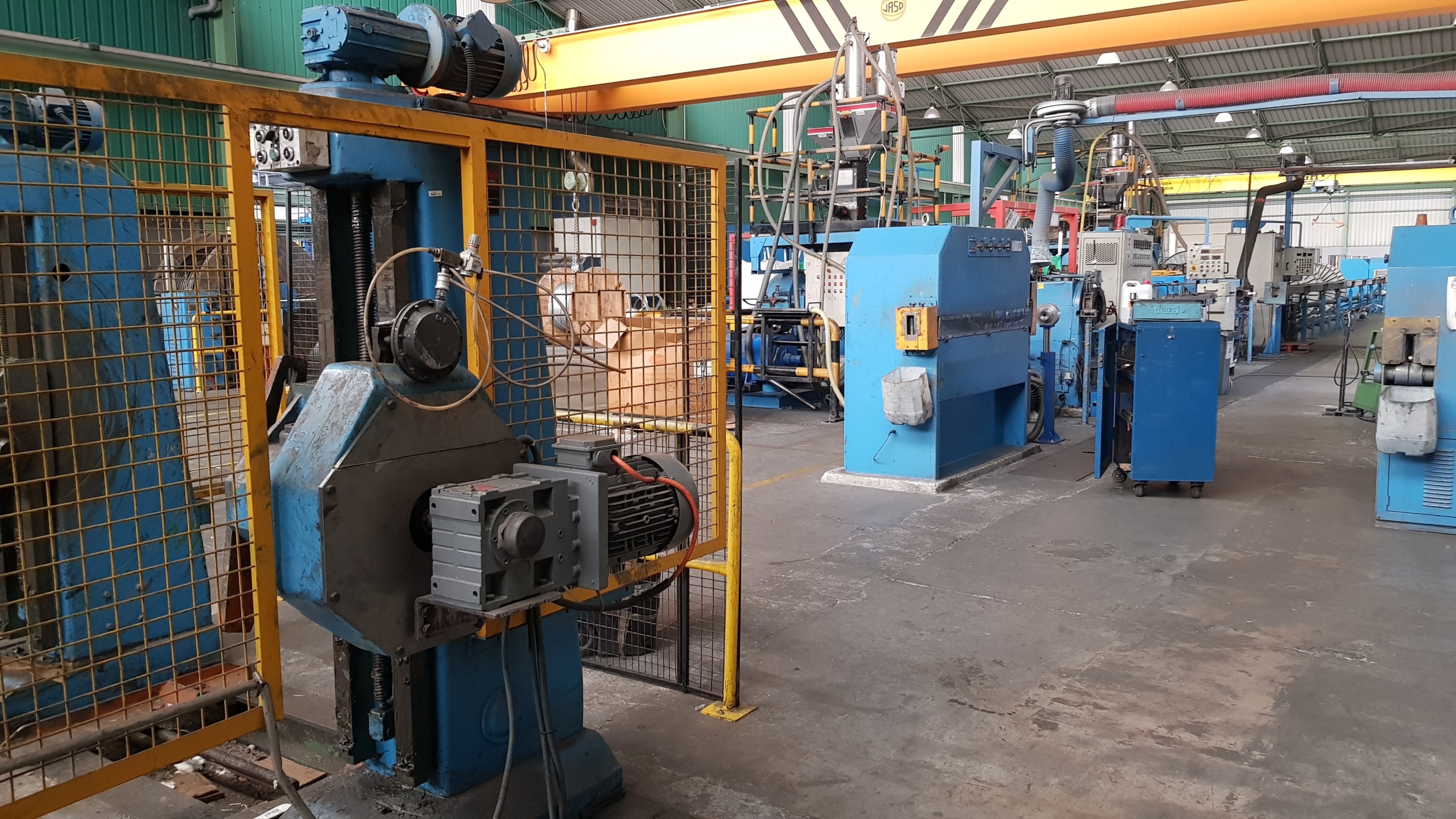

Complete line composed of following items:
- One CORIMA column type pay-off
- Type : S.P.M 2500
- For bobbins 2600 mm max (overall width 1700 mm max)
- With pneumatic disk brake
- FLYMCA inlet caterpillar
- Type : CC-800
- Approximate pulling length: 2000 mm
- FRANCIS SHAW 120 mm/25D main extruder
- With MAGUIRE gravimetric dosing gravimetric device. Capacity: 3 colors
- With cross extrusion head and existing extrusion tools
- ZUMBACH thickness gauge (hot), type 76XY
- Intermediate cooling trough
- Initial section: 15 x 15 cm
- Length: 4 meters
- Material: stainless steel
- BETA spark tester, type S2550
- MAILLEFER 120 mm/20D secondary extruder
- Type BMO 120 – 20D
- With MAGUIRE gravimetric dosing system, type WSB 440R. Capacity: 4 colors
- With cross extrusion head and existing extrusion tools
- ZUMBACH thickness gauge, type 64 XY
- Main cooling trough:
- Final section: 15 x 15 cm
- Length: 20 meters
- Material: stainless steel
- With cable dryer located at the end of the trough
- Meter counter
- FLYMCA pulling caterpillar
- Type : C-2-1200
- Approximate pulling length: 2500 mm
- Two cantilever type take-ups
- For bobbins 2200 mm max (overall width 1330 mm max)
- Electrical cabinet and control panel
