Description
- Line particularly designed for XLPE insulation (sioplas technology)
- It could also be used with PVC
- Line also designed for sheathing purposes

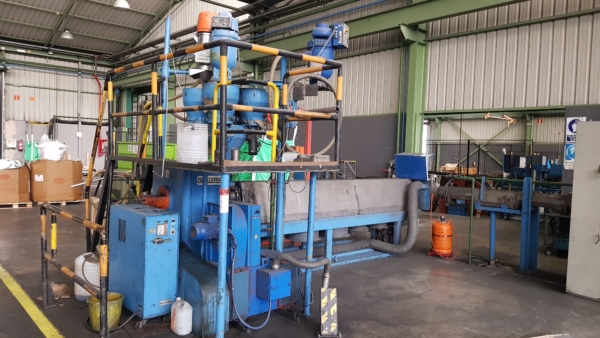

Complete line composed of following items:
- One column type pay-off
- For bobbins 2200 mm max (overall width 1450 mm max)
- With pneumatic disk brake
- Inlet caterpillar
- Approximate pulling length: 1000 mm
- MAILLEFER 120 mm/30D main extruder
- Type : BM 120 – 30
- With volumetric dosing system
- With barrel and screw bought new in June 2018
- With cross extrusion head and existing extrusion tools
- Main cooling trough
- Initial section: 15 x 15 cm
- Length: 22 meters
- Material: stainless steel
- With cable dryer located at the end of the trough
- ZUMBACH thickness gauge, type 64 XY
- pulling caterpillar
- Approximate pulling length: 1 m
- ZUMBACH spark tester, type AST
- IMAJE ink jet marker
- Type 9040
- One CABALLE column type take-up
- For bobbins dia. 2200 mm max (overall width 1550 mm max)
- Electrical cabinet and control panel
