MAPRE 120 mm complete extrusion line. Complete line as new.
- Brand: MAPRE (Belgium)
- Complete extrusion line designed for:
- XLPE insulation conductors or sheathing of LV/MV power cables
- Process 1: XLPE insulation of ABC cables/Other conductors:
- Cable range (mm²): 16-150
- Diameter before insulation (mm): 55-100
- Diameter over insulation (mm): 60-110
- Sheath thickness (mm): 1.2 – 4.2
- Process 2: PVC sheathing of MV cables:
- Cable range (mm²): 3 x 25 up to 3 x 300
- Diameter before sheathing (mm): 55-101
- Diameter over sheathing (mm): 60-110
- Sheath thickness (mm): 1.2 – 4.2
- Maximum speed: 125 m/min max
- Line direction: left to right

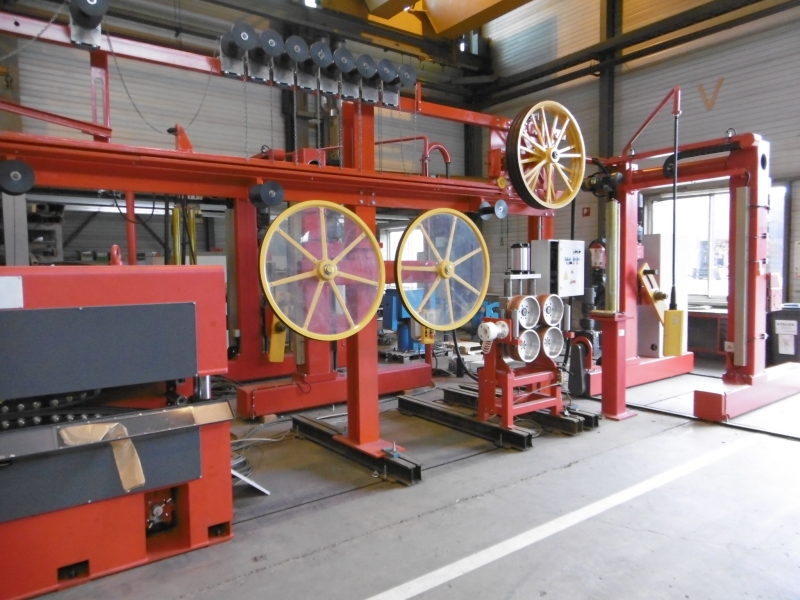

Complete line composed of following items:
- Two (2) portal type motorized self-traversing pay-offs
- For bobbins diameter up to 2500 mm, with dancer
- Horizontal accumulator
- Feeding caterpillar. 2000 kgs
- Main extruder 120mm / 25D for PVC/PE (XLPE), including screw thermoregulation device.
- 2 single layer crossheads 25/40 (fixed centering) and 130/140 (manual centering).
- MAGUIRE GRAVIMETRIC dosing system
- Hopper loader for main raw compound
- Hopper loaders for additives.
- Pellets dryer with vacuum loaders
- MEDEK & SCHORNER embossing marker
- Single path cooling trough (40 m cooling length) with hot water section and air dryer.
- Two (2) SIKORA dual plane diameter measuring gauges (hot/cold dual loop regulation).
- SIKORA spark tester., 25 kV AC
- Length measuring device.
- Pulling caterpillar 2000 kgs
- Horizontal accumulator
- Two (2) portal type self-traversing take-ups
- For bobbins diameter up to 2500 mm.
- Electrical control desk
- SIEMENS PLC
- MAP-OP supervision system.
New line still packed, never installed
