Description
- Line particularly designed for XLPE insulation (sioplas technology)
- It could also be used with PVC
- Line also designed for sheathing purposes
- One extrusion screw for the MAPRE extruder
- Two extrusion screws for the DAVIS STANDARD extruder : one for Sioplas/PVC and the other one for flame retardant materials
Complete line composed of following items:

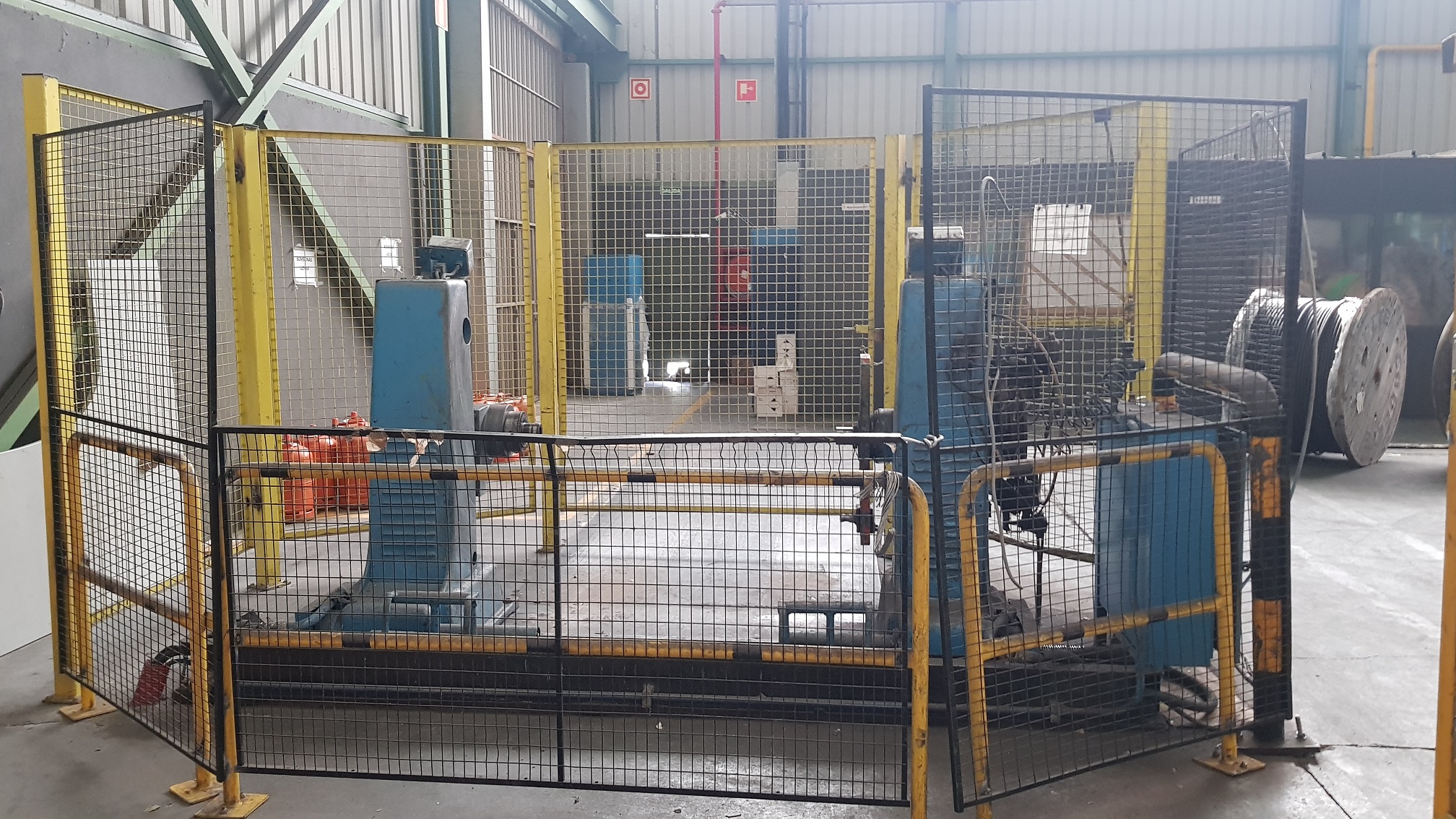

- One column type pay-off
- For bobbins dia. 2600 mm max (overall width : 1700 mm max)
- With pneumatic disk brake
- CORIMA inlet caterpillar
- Approximate pulling length: 2000 mm
- MAPRE 120 mm/25D main extruder
- With MAGUIRE gravimetric dosing device, type WSB 422T. Capacity: 4 colors (two with aspiration)
- With cross extrusion head and existing extrusion tools
- With extrusion screw thermoregulated
- ZUMBACH thickness gauge, type ODAC 76XY
- Intermediate cooling trough
- Initial section: 15 x 15 cm
- Length: 5 meters
- Material: stainless steel
- DAVIS STANDARD 100 mm/25D secondary extruder, type 41/2’’ 450 H
- With MAGUIRE gravimetric feeding system: 2 colors
- With cross extrusion head and existing extrusion tools
- ZUMBACH meter counter, type ODAC 76XY
- Main cooling trough:
- Final section: 15 x 15 cm
- Length: 20 meters
- Material: stainless steel
- With cable dryer located at the end of the trough
- Meter counter, including a cable marker
- ROSENDAHL pulling caterpillar
- Approximate pulling length: 2500 mm
- Two column type take-ups
- One STOLBERGER for bobbins dia. 2600 mm max (overall width : 1330 mm max)
- ONE CABALLE for bobbins dia. 2240 mm max (overall width : 1500 mm max)
- Electrical cabinet and control panel
