Description
- Type: 1+5/1600
- For pay-off bobbins dia. 1600 mm DIN
- For laying-up of round insulated conductors up to maximum 6×185 mm2
Complete line composed of following items:
- Cantilever type pay-off
- For bobbins 1600 mm DIN
- Bobbins taken on shaft
- With pneumatic disk brake
- Pay-off brake : continuously adjustable

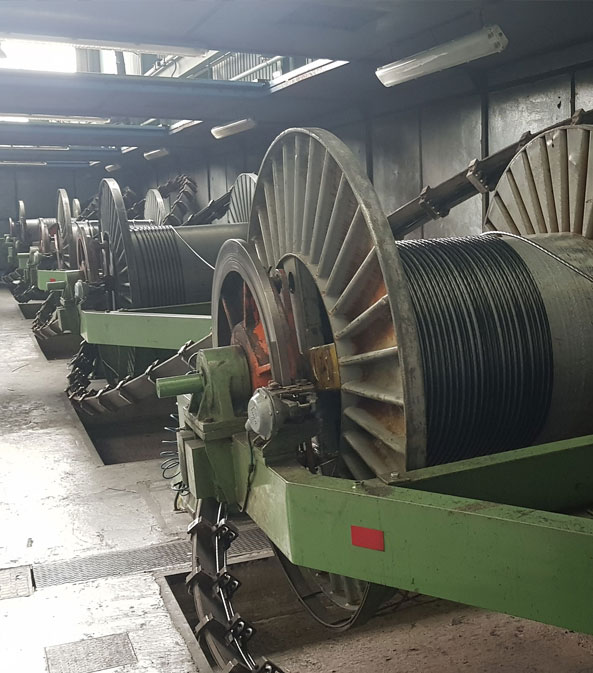

- Bow cabler section with 5 pay-off
- Pay-off bobbins : 1600 mm DIN
- Bobbins taken on shaft
- With pneumatic disk brake on each of the pay-off bobbins
- Pay-off bobbins brake : continuously adjustable
- Pay-off bobbins bows : driven by one cardan shaft
- Cardan (driving the 5 bows) : driven by DC motor
- Loading of the bobbins : by a top rolling crane available in previous factory where machine was installed (this crane is not making part of the scope of supply)
- Double wheel pulling capstan, 2×1500 mm
- Driving motor: DC 24 kW
- CLINTON spark tester
- Type : HF 15 AC
- Belt type meter counter
- Column type take-up
- For bobbins 2200 mm max
- Electrical cabinet and control desk
- With EUROTHERM drives
- With SIEMENS PLC
