Description
- Type: tandem (drawing capstans in line, the ones behind the others)
- Number of dies: 9
- Elongation: decreasing from 44 % – 16.46 %
- Inlet aluminium rod diameter range: 9,5 – 8,00 mm
- Outlet aluminium diameter range: 1,80 mm – 3,00 mm
- Maximum linear speed: 16,5 m/sec
Line composed by following items:

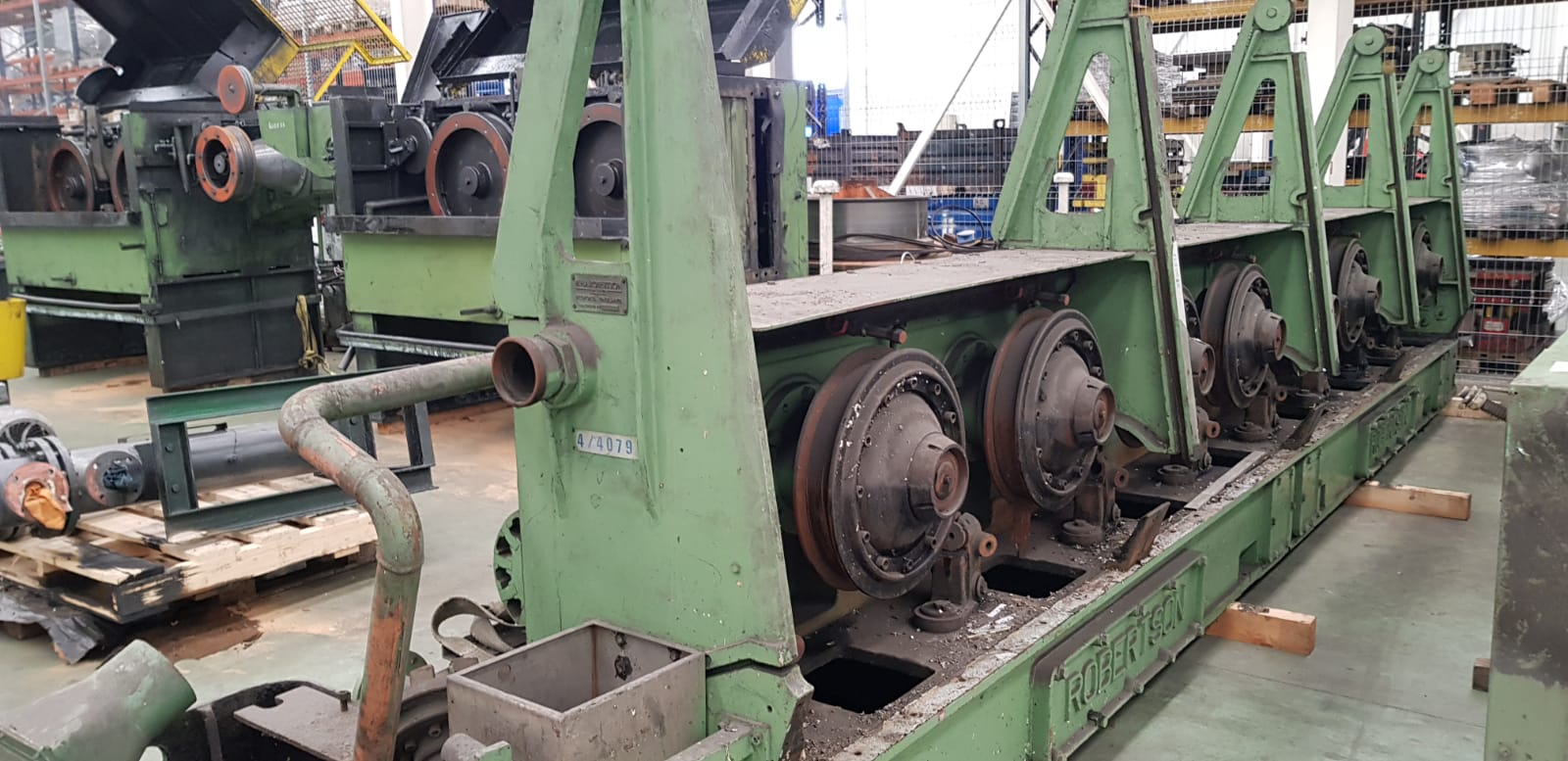

- ROBERTSON 9 dies rod breakdown drawing machine
- 8 drawing capstans with dia. 450 mm
- 1 last drawing block (with possibility of using a spider for collecting the drawn wire) with dia. 450 mm
- Material of the drawing capstans: hardened steel
- Elongation: decreasing from 44 % – 16.46 %
- Inlet aluminium rod diameter: 9,5 mm
- Outlet aluminium diameter range: 1,80 mm – 3,00 mm
- Maximum linear speed: 16,5 m/sec
- Without driving motor
- SHAW dancer
- Diameter of pulleys: 400 mm
- Pulleys with 7 canals and 2.5 meters of travel
- SKET single dynamic spooler
- For bobbin diameter 700 mm max; width: 660 mm max (smaller bobbins could be managed using pintles adaptors)
- Hydraulic platform integrated for bobbin loading / unloading (Hydraulic group is included)
- Closing of the pintles by own motor
- Without driving motor
- Electrical cabinet: not available
