Description
- For stranding up to 7 wires (1+6)
- Steel wires in the range 1 – 4 mm
- Aluminium wires in the range 1.5 – 4.8 mm
- Aluminium alloy wires in the range 1.5 – 4.8 mm
- Maximum rotating speed: 1000 rpm max.
- Stranding lay length: 50 – 300 mm (adjustable through change gears)
- For pay-off bobbins with following dimensions:
-
- Diameter : 560 mm
- Barrel : 210 mm
- Overall width : 320 mm
- Internal useful width : 280 mm
- Bore : 130 mm
- Drive of the stranding tube as well as pulling capstan: through line shaft itself driven by a 96 kW DC motor
Complete line composed of following items:

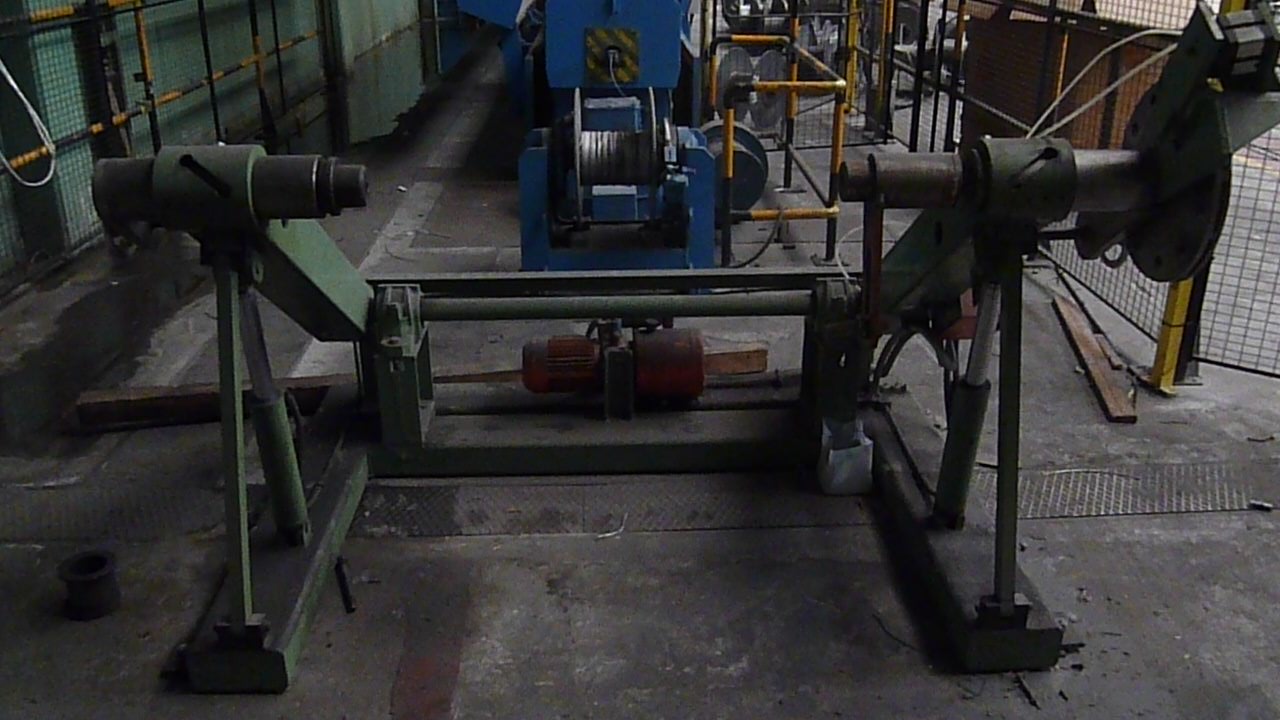

- Cantilever type pay-off for bobbins 1250 mm, with pneumatic disk brake
- Cantilever type pay-off for bobbins 560 mm, with mechanical cord brake
- Stranding tube for 6 bobbins, with encircled bearings
- Mechanical cord brake on each of the pay-off bobbins
- With two bearings between supports/bearings
- With protection guard
- Wires preforming head
- Postforming device
- Double wheel pulling capstan, 2 x 1000 mm
- With gear box for adjusting the stranding lay-length
- Column type take-up for bobbins 2000 mm
- Driving motor: 8 kW
- Electrical cabinet and control panel
